__________________________________________________________________________________________________________________________________________________________Features:
◆ Light weight metal shell design
◆ High quality & high efficiency &Brushless motor
◆ IP67 waterproof design
◆ Programmable Digital Circuit
◆ Use magnetic sensing potentiometer Higher accuracy and longer service life
◆ Using high-precision stainless steel gear
◆ Fully enclosed ball bearing, higher accuracy and longer life
◆ Support high voltage input: 4.8-8.4V
__________________________________________________________________________________________________________________________________________________________
Description:

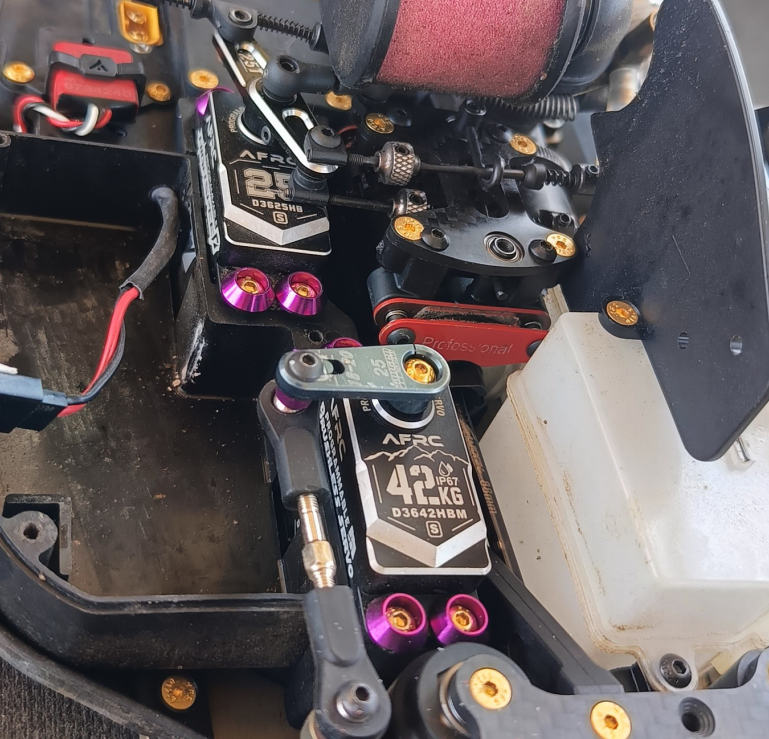

Model: D3642HBM-S
Dimensions: 40 x 20 x 37.5 mm
Weight: 76g (No including accessory)
Working voltage: 4.8~ 8.4V
Motor type: Brushless motor
Gear type: Strength steel
Case type: Aluminum alloy
Waterproof: IP67
Torque:
4.8V：28.0 kg-cm
6.0V：32.0 kg-cm
7.4V：37.0 kg-cm
8.4V：41.8 kg-cm
Speed:
4.8V：0.14 sec/60°
6.0V：0.12 sec/60°
7.4V：0.10 sec/60°
8.4V：0.09 sec/60°
